If you hook the battery leads of the motor up to a battery, the axle will spin. If you reverse the leads, it will spin in the opposite direction. The nylon end cap is held in place by two tabs. Inside the end cap, the motor’s brushes transfer power from the battery to the commutator as the motor spins.

How do you hook up a motor pulley?

To attach a pulley, a mechanic tightens mounting screws, which draw the tapered surfaces of the bushing and pulley hub together. Forcing the mating tapers together creates a wedging action between the bushing and pulley, and between the bushing and drive shaft.

What keeps the wire coil spinning?

EXPLANATION: When electricity is passed through a wire coil (as you are doing when you connect the coil to the battery), you create an electromagnetic field, which pushes the coil away from the magnet. When the circuit is complete again, the magnetic field once again repels the coil, so it keeps spinning.

How do motors spin?

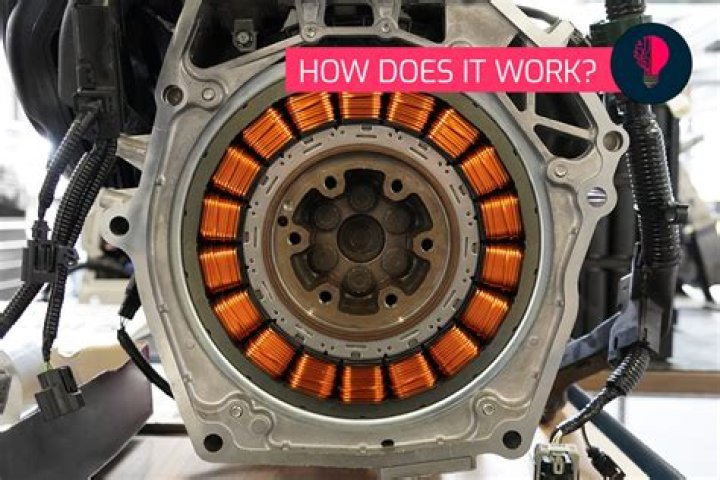

Inside an electric motor, permanent magnets are set onto a ring surrounding a coil of wire. When the appliance’s switch is flicked on, electrons flow through the wire, turning it into an electromagnet. The attractive and repulsive forces of the permanent magnets around it make the electromagnet spin.

What is motor clamp?

A DC motor clamp or a bracket is used to mount the motor tightly on any solid surface. Thus it increases the usability of the motor and makes motor mounting very convenient. This clamp or mount bracket is designed for DC geared motors. They have been used regularly in automation robots in industries.

How do you put a pulley on a motor shaft?

How do you connect a single-phase DC electric motor?

A single-phase motor, whether DC or AC, is moderately simple to connect. Remove the panel on the single-phase DC electric motor so you can access the terminal connectors. Use a screwdriver to remove the screws holding the panel in place, and then lift off using your fingers. There are two terminal connectors on a DC motor: live and neutral.

How do you wire a DC motor to a wire?

There are two terminal connectors on a DC motor: live and neutral. Loosen the terminal connector screws using a screwdriver. Don’t completely undo them. Strip 1 inch of outer plastic off the ends of a strip of dual-core AWG 14 wire using wire strippers so you get to the two internal wires colored red and black.

How do electromagnets work in electric motors?

In an electric motor, the electromagnet is placed on an axle so it can spin freely inside the magnetic field of a permanent magnet. When an electric current is passed through the wire, the resulting temporary electromagnetic field interacts with the static permanent magnet, and attractive and repelling forces are created.

What are the two types of magnets in a motor?

There are two magnets in a standard electric motor: a permanent magnet, and a temporary magnet. The temporary magnet is a special kind of magnet, called an electromagnet. An electromagnet is created by passing an electric current through a wire.
