How to Test a Solenoid Coil?

1. Set your multimeter on ohms. If the multimeter is not automatic, set it on 2k ohms.
2. Place the probes of multimeter across the pins of a solenoid coil. If you find 3 pins there, one of them is a flat pin which is connected to the ground.
3. Read the number on the multimeter.

What is a valve coil?

The purpose of a solenoid valve coil is to convert electrical energy into linear motion. The coil consists of copper wire (or aluminum) wound around a hollow form. When electric current flows through the coil, a magnetic field is created. This is accomplished by placing a ferromagnetic core inside the coil.

What is a hydraulic solenoid valve?

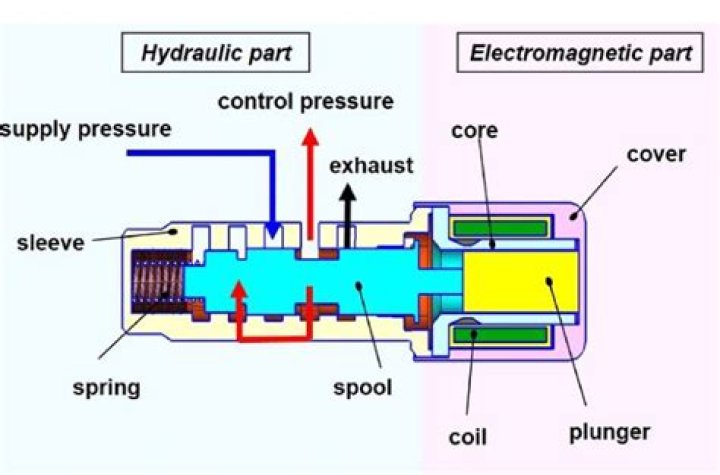

Hydraulic solenoid valves are used to electrically direct hydraulic fluid to and from an actuator by shifting a spool or poppet within the valve. These valves can be 2-, 3-, 4-, or even 5-way valves shifted by either one or two electronic coils.

Does coil have polarity?

A common question that is asked about solenoid valve coils is whether polarity needs to be considered. The simple answer is that polarity does not matter on solenoid valve coils. Typically, the lead wires will be the same color so you can connect the positive terminal to either of the two wires.

What is a solenoid valve and coil used for?

A solenoid coil on a hydraulic system opens, closes, and changes the directional flow of fluid in the system. They are low power switches that open and close pilot valves that control the main valve that applies pressure to the connected piston or diaphragm.

The purpose of a solenoid valve coil is to convert electrical energy into linear motion. The coil consists of copper wire (or aluminum) wound around a hollow form.

What is a hydraulic cartridge valve?

A solenoid hydraulic valve cartridge is designed to control hydraulic directional flow, or release pressure from hydraulic actuators or hydraulic systems. Our standard solenoid valve cartridge are compact with an industry standard common cavity (ICC).

A solenoid valve is a voltage-actuated valve, meaning it is activated by an electrical charge. Hydraulic machines use oil under pressure as their prime source of energy, and so a solenoid valve becomes a hydraulic solenoid valve when the fluid is introduced into its ports, or openings.

What is a hydraulic flow control valve?

A flow control valve is a device used for adjusting or manipulating the flow rate of a liquid or a gas in a pipeline. The valve contains a flow passage or a port whose flow area can be varied. The role of a flow control valve in a hydraulic circuit is very important and its very location is critical to optimum system performance.
