I2C is a serial communication protocol, so data is transferred bit by bit along a single wire (the SDA line). Like SPI, I2C is synchronous, so the output of bits is synchronized to the sampling of bits by a clock signal shared between the master and the slave. The clock signal is always controlled by the master.

What is I2C timeout?

The Bus Free Timeout is an error recovery mechanism that will allow the SMBus or I2C state machine to consider the bus “free” whenever the SDA and SCL lines are both high for more than 10 SMBus clock source periods or the configured I2C bus free timeout period.

How many wires does I2C protocol use?

I2C communication is the short form for inter-integrated circuits. It is a communication protocol developed by Philips Semiconductors for the transfer of data between a central processor and multiple ICs on the same circuit board using just two common wires.

What is SDA and SCL pins?

Arduino boards to share information with each other. The I2C protocol involves using two lines to send and receive data: a serial clock pin (SCL) that the Arduino Master board pulses at a regular interval, and a serial data pin (SDA) over which data is sent between the two devices.

What are the two I2C signals?

The two I2C signals are serial data and serial clock. Together, these signals make it possible to support serial transmission of 8-bit bytes of data-7-bit device addresses plus control bits-over the two-wire serial bus.

What is I2C sensor?

The I2C bus is a simple and flexible way to transfer digital data between two electronic devices which may be physically seperate or contained on the same printed circuit board (PCB). I2C is the bus of choice for many sensors between many vendors.

What are the two wires on I2C?

The I2C bus physically consists of 2 active wires and a ground connection. The active wires, called SDA and SCL, are both bi-directional. SDA is the Serial DAta line, and SCL is the Serial Clock line. The I2C bus is a multi-master bus.

How many masters can be connected in I2C?

Masters and Slaves A slave cannot initiate a transfer over the I2C bus, only a master can do that. There can be, and usually are, multiple slaves on the I2C bus, however there is normally only one master. It is possible to have multiple masters, but it is unusual and not covered here.

What is Inter-Integrated Circuit (I2C) protocol?

The inter-integrated circuit or I2C Protocol is a way of serial communication between different devices to exchange their data with each other. It is a half-duplex bi-directional two-wire bus system for transmitting and receiving data between masters (M) and slaves (S). These two wires are Serial clock line or SCL and Serial data line or SDA.

What is I2C (half duplex communication)?

Half Duplex Communication—I2C is a half-duplex communication meaning in transmission or reception of data between two devices, only one type of communication can be established at a time. The bus can perform either read or write operation at a single time.

How does the I2C bus work?

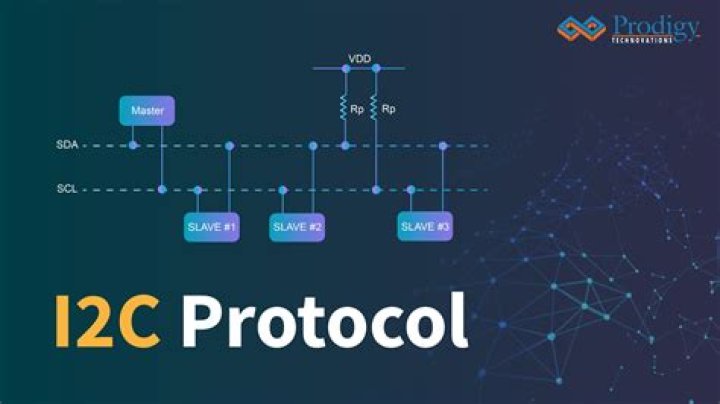

The I2C bus consists of two bidirectional “open-drain” lines – SDA and SCL – pulled up with resistors as shown below. The Serial Data Line (SDA) is the data line (of course!). All the data transfer among the devices takes place through this line.

What is the I2C fast mode timing definition?

Figure 1: I2C Fast Mode Timing Definition Rise (tr) and Fall (tf) Times t r is defined as the amount of time taken by the rising edge to reach 70% amplitude from 30% amplitude for either SDA and SCL, while t f is defined as the amount of time taken by the falling edge to reach 30% amplitude from an amplitude of 70%. Figure 2: Rise and Fall Time
