The most common way to measure current is to connect the ammeter (a meter to measure current) or shunt resistor in series with the circuit. An ammeter or ammeter shunt is really nothing more than a highly accurate resistor. When we place a precision resistor across a circuit, a voltage drop will occur across it.

How does a DC current sensor work?

How do current sensors work? When current flows through a conductor, it creates a proportional magnetic field around the conductor. The sensor then outputs a certain voltage or current that a meter connected to the sensor can read and translate into the amount of current flowing through the conductor.

Which sensor can be used for DC current measurement?

Hall effect sensor
The Hall effect sensor is best suited to DC current, and the inductive sensor to AC current. Hall effect and induction are noncontact technologies based on the principle that for a given current flow, a proportional magnetic field is produced around the current-carrying conductor.

How can I measure DC current?

Both AC and DC currents can be measured with a multimeter by connecting the meter in series with the circuit, in which the current is measured provided the current in that circuit is limited or controlled by a load or appropriate values of resistance.

How do you measure current flow?

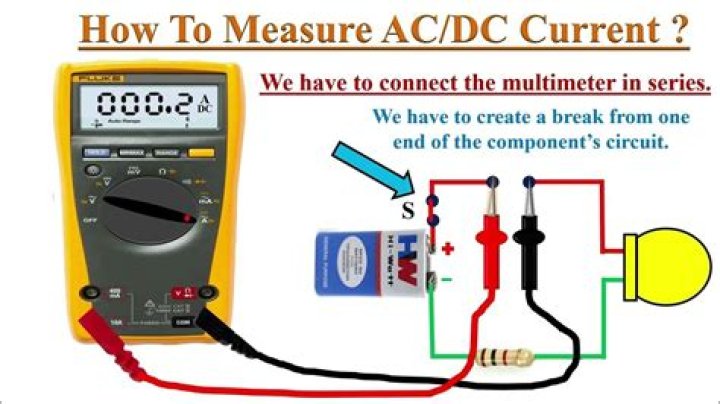

To measure current, you must connect the two leads of the ammeter in the circuit so that the current flows through the ammeter. In other words, the ammeter must become a part of the circuit itself. The only way to measure the current flowing through a simple circuit is to insert your ammeter into the circuit.

Can you measure DC current with a clamp meter?

AC/DC current: Current, measured in amperes, is the flow of an electric charge and is the most basic measurement of a clamp meter. Most modern clamp meters can measure both AC and DC current.

How does a multimeter measure DC current?

How to measure dc voltage with a digital multimeter

1. Then insert the red probes into the V Ω jack. When finished, remove the probes in reverse order: red first, then black.
2. Connect the test probes to the circuit: black to the negative polarity test point (circuit ground), red to positive test point.

Can you measure DC current with a current transformer?

In [7] we have shown that DC current component in the current measured by current transformer in the electrical energy meter can be detected by monitoring the second harmonic voltage in the secondary winding. Both AC and DC current components should be present in order to utilize this effect.

What is a DC current sensor?

DC Current Sensor Eaton DC Current Sensors are a family of Hall-effect sensors used to measure the current flow in a wire. Eaton DC Current Sensors are optimally ruggedized for transportation applications with outstanding environmental performance characteristics.

Can AC zero-flux sensors measure DC current?

In the low-frequency region starting at DC, the magnetic flux cannot all be canceled out, and some remains. Since detection is performed by a winding, AC zero-flux sensors can measure only AC current. They cannot measure DC current.

How do you measure DC current using a resistor?

The voltage drop across the resistor is measured and Ohm’s Law is used to calculate the current flow. The most common noninvasive method for measuring DC current involves the use of a Hall Effect sensor. This is placed near a conductor to measure the magnetic field surrounding the conductor. That field strength is used to determine the current.

What is an E Eaton DC current sensor?

Eaton DC Current Sensors are optimally ruggedized for transportation applications with outstanding environmental performance characteristics. Eaton DC Current Sensors are a family of Hall-effect sensors used to measure the current flow in a wire.
