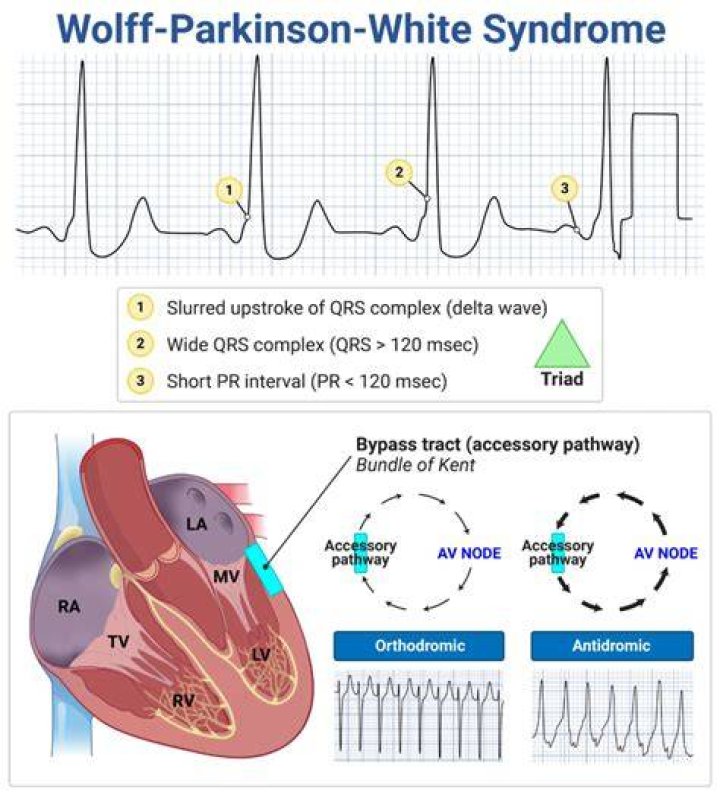

Classic ECG findings that are associated with WPW syndrome include the following:

1. Presence of a short PR interval (<120 ms)
2. A wide QRS complex longer than 120 ms with a slurred onset of the QRS waveform, termed a delta wave, in the early part of QRS.
3. Secondary ST-T wave changes (see the image below)

What does the P wave show on an ECG?

The P wave and PR segment is an integral part of an electrocardiogram (ECG). It represents the electrical depolarization of the atria of the heart. It is typically a small positive deflection from the isoelectric baseline that occurs just before the QRS complex.

What is Wolf Parkinsons White syndrome ECG?

Wolff-Parkinson-White is characterized by the presence of an “accessory pathway” or a “bypass tract.” This connects the electrical system of the atria directly to the ventricles, allowing conduction to avoid passing through the atrioventricular node.

What is Ashman’s phenomenon?

Ashman phenomenon is an aberrant ventricular conduction due to a change in QRS cycle length, and it can be seen in any supraventricular arrhythmia. It is gnerally described as a wide QRS complex that follows a short R-R interval preceded by a long R-R interval.

Is WPW Orthodromic or Antidromic?

Only about 5% of the tachycardias in patients who have WPW syndrome are antidromic tachycardias; the remaining 95% are orthodromic.

How do you find P wave on ECG?

To measure the P-P interval, place the edge of a piece of paper along the line of the rhythm and mark the centre of 2 consecutive P waves. Compare this measurement with the next 2 P waves. If the measurements are the same then the rhythm is regular.

What does P wave look like?

The normal P wave morphology is upright in leads I, II, and aVF, but it is inverted in lead aVR. The P wave is typically biphasic in lead V1 (positive-negative), but when the negative terminal component of the P wave exceeds 0.04 seconds in duration (equivalent to one small box), it is abnormal.

Is WPW AVRT or avnrt?

Wolff-Parkinson-White (WPW) syndrome is a heart rhythm problem that causes a very fast heart rate. WPW is one type of supraventricular tachycardia called atrioventricular reciprocating tachycardia (AVRT).

What are the ECG changes in PE?

Let’s look at the ECG changes in PE 1 Sinus tachycardia. 2 Supraventricular tachycardias such as SVT or PE. 3 S1Q3T3 – up to 50%- but can occur in those without PE. 4 T wave Inversions in the anterior and inferior leads. The most specific finding. 5 RBBB pattern. 6 (more items)

What are the ECG features of AVRT with antidromic conduction?

In antidromic AVRT anterograde conduction occurs via the accessory pathway with retrograde conduction via the AV node. Much less common than orthodromic AVRT, occurring in ~5% of patients with WPW. ECG features of AVRT with antidromic conduction: Rate usually 200-300 bpm

How reliable is an EKG for pulmonary embolism?

Reliability: ECG is neither specific nor sensitive for Pulmonary Embolism (PE) but it may one of the first indications of right ventricular overload. 1. Have a high index of suspicion: No signs, symptoms, laboratory values, Chest X-ray, or ECG findings are diagnostic of PE or are consistently present. 2.

What are the possible ECG changes in acute pulmonary embolism?

Possible ECG changes in Acute Pulmonary Embolism: There are about 21 ECG signs associated with PE. These signs may coexist and 10 of the common signs are: Sinus rhythm – rate ≥ 90% i.e. may be a normal ECG (80% cases) Sinus tachycardia (70% cases)
