How do you get STC 50 walls?
Isabella Little Summary: Increasing STC Ratings Use common rules of thumb, including moving to lighter gauge studs and spacing studs further apart. Then consider adding soundproof membranes and other soundproofing materials to improve your wall STC to 50, 55, or beyond.
Does insulation have an STC rating?
The higher the STC rating, the better the sound insulation performance of the construction.
Is 60 STC good?
An STC rating of 20 is considered very poor while a rating of 60 is considered excellent . For example, if you were in a room where a wall joining an adjacent room had an STC rating of 20 you would be able to hear someone speaking at a low volume through that wall.
What is STC 56?
Soundproofing Project Reasonable Expectations and STC Rating Definitions
| STC RATING | REASONABLE EXPECTATION |
|---|---|
| STC 52-55 | Loud speech audible if straining to listen, music can be heard and may still be disturbing |
| STC 57-60 | Loud speech essentially inaudible, music can be heard faintly but bass may still be disturbing |
What is a good STC?
STC rating of 38-42 is considered good soundproofing for residential. STC rating of 50-65 is professional, commercial soundproofing for recording studios, etc. These terms and definitions are related to Sound Transmission Class and will help provide the full picture of how sound is measured. dBa – A-weighted decibels.
What STC rating do I need?
The International Building Code (IBC) requires lab-tested STC 50 for walls, floors, and ceilings for new construction. Note that this is a minimal amount of isolation and you will likely be disturbed by neighbors. Better to look at STC 55 to STC 60 for best satisfaction.
What is the STC rating of fiberglass insulation?
39
Fiberglass (or traditional) insulation falls in the middle range of options bringing the STC rating to 39.
What is the STC rating for a 2×4 stud?

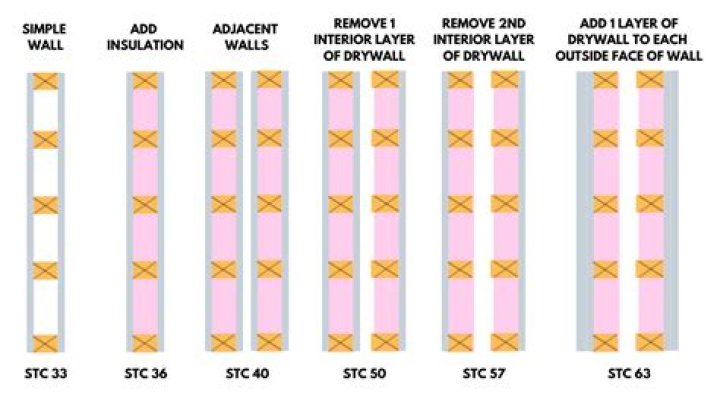

Description Estimated STC Rating 2×4 stud, 5/8″ gyp (2 layers total), Bat 34 – 39 Staggered studs, 5/8″ gyp (2 layers tota 46 – 47 2×4 studs, 5/8″ gyp (2 layers total), Ba 56 – 59
Does doubling the mass of a wall increase the STC rating?
Doubling the mass of a wall assembly does not double the STC rating. An empty framed wall (steel studs and a layer of gypsum wallboard on each side) has an STC of approximately 35 Adding an additional layer of gypsum wallboard to each side (from two sheets to four sheets) increases the STC by about 5-6 points.
What does STC mean in soundproofing?
Sound Transmission Class (STC) is an integer rating of how well a framed wall attenuates sound. Doubling the mass of a wall assembly does not double the STC rating. An empty framed wall (steel studs and a layer of gypsum wallboard on each side) has an STC of approximately 35
How are the estimated STC ratings calculated?
The estimated ratings are based on laboratory test results from various compendiums of STC ratings. It is recommended to consult a professional acoustician for more detailed information or to analyze the specifics of your project/assembly.
