How do you drive an Arduino DC motor?
Isabella Little Arduino Motor Control Setup
- Connect 5V and ground of the IC to 5V and ground of Arduino.
- Connect the motor to pins 2 and 3 of the IC.
- Connect IN1 of the IC to pin 8 of Arduino.
- Connect IN2 of the IC to pin 9 of Arduino.
- Connect EN1 of IC to pin 2 of Arduino.
- Connect SENS A pin of IC to the ground.
Which driver is used to connect DC motor to Arduino?
L298N Motor Driver
One of the easiest and inexpensive way to control DC motors is to interface L298N Motor Driver with Arduino. It can control both speed and spinning direction of two DC motors.
Can Arduino run DC motors?

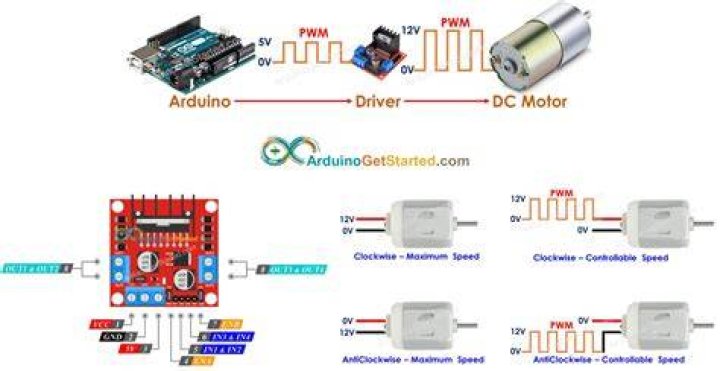

Following is the schematic diagram of the DC motor interface to Arduino Uno board. These two digital pins of Arduino control the direction of the motor. The EN A pin of IC is connected to the PWM pin 2 of Arduino. This will control the speed of the motor.
What is a motor driver?
What is a Motor Driver? Motor drivers acts as an interface between the motors and the control circuits. So the function of motor drivers is to take a low-current control signal and then turn it into a higher-current signal that can drive a motor.
What is H bridge motor driver?
An H-bridge is an electronic circuit that switches the polarity of a voltage applied to a load. These circuits are often used in robotics and other applications to allow DC motors to run forwards or backwards. In particular, a bipolar stepper motor is almost always driven by a motor controller containing two H bridges.
What is Motor Driver?
A motor driver is a small Current Amplifier whose function is to take a low-current control signal and then turn it into a higher-current signal that can drive a motor. The L293D is a typical Motor Driver which can drive 2 DC motors simultaneously.
What is Arduino Motor Driver?
The Arduino Motor Shield is based on the L298 (datasheet), which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your Arduino board, controlling the speed and direction of each one independently.
How do you connect a DC motor?
To connect a DC motor to a circuit simply so that it will spin is very easy. All you have to do is connect the amount of DC voltage to the motor which it is rated for. Therefore, for a DC motor rated at 9 volts, all you must do is connect 9V to the circuit.
What is Arduino motor driver?
How to use motor Arduino?
Connect 5V and the ground of the IC to 5V and the ground of Arduino,respectively.
What is DC motor drive?
DC motor drives are defined as amplifiers or power modules that interface between a controller and a DC motor. They convert step and direction input from the controller to currents and voltages compatible with the motor. These units are sometimes called variable speed drives, referring to a majority of DC motor drives which adjust shaft speed.
What is the Arduino code?
The Arduino Integrated Development Environment (IDE) is the main text editing program used for programming the Arduino. It is where you’ll be typing up your code before uploading it to the board you want to program. Arduino code is referred to as sketches.
What is DC motor control?
Control can mean bi-directional control of the dc motor, usually with speed control included. That is accomplished by use of an H-bridge, basically 4 power transistors arranged so that current can flow through the motor, usually under control of a microcontroller, either direction as desired.
