How Do I Draw a Site Plan?

1. Step 1: Determine property boundaries and lot dimensions before drawing a site plan.
2. Step 2: Determine the location of structures and other site features in relation to the property boundaries before you draw a site plan.
3. Step 3: Finally draw a site plan.

What is needed on a site plan?

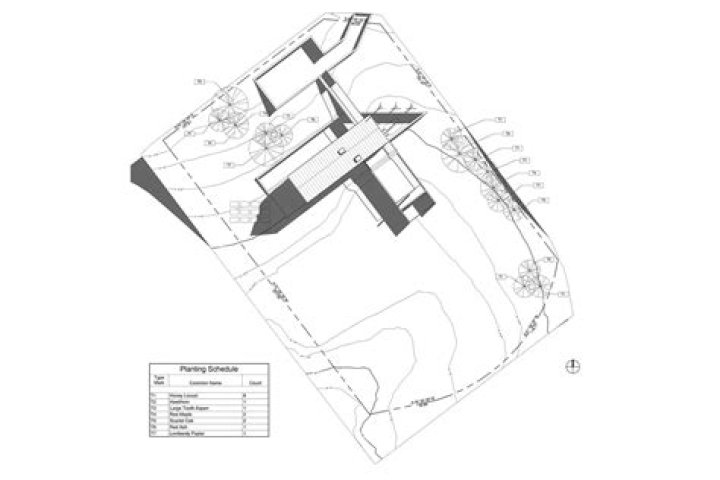

A site plan should show all structures on the proposed site; any other features such as vegetation, carparks, driveways and crossovers; the length of boundaries and walls; site levels; the distance between existing and proposed buildings and the property’s boundaries and adjoining walls.

What is needed for a site plan?

The basic idea behind a site plan is to show: the shape of the site. the size of the site – shown using a scale. the orientation (i.e. which way is north)

Can not read plan file archicad?

That ‘can not read plan’ message can mean that you are trying to open a newer version file (say 23) in an older version (say 22). If you open through the FILE menu in Archicad, the open dialogue box will show you the file version when you select it.

How do I draw on layout archicad?

1. Use the File > External Content > Place External Drawing from File command.
2. From the appearing Place Drawing dialog box, select a drawing file from the file system. (The PDF format, many image formats, DXF and DWG are among the available formats.) Click Open.
3. Use the cursor to place the drawing in the ARCHICAD window.

What is ArchiCAD site plan?

Site plan shows Plan of the buildings from top view (elements can come from different levels) and the site information from ground. ARCHICAD has the required information in different storeys. This article will focus on how to combine those information to prepare a site plan.

How do I rotate a view in ARCHICAD?

This can be done by rotating the view in ARCHICAD. Choose the pre-set rotation or Set Orientation Graphically… The orientation comes from the Surveyor’s drawing. Save the view with rotation to View Map as that can be accessed anytime. Thanks for reading.

How to add a marker to a site plan in Revit?

From MODEL DISPLAY panel choose Uniform Pen for Uncut Elements and choose the desired pen. Choose Worksheet tool and place the marker as shown below. Open the worksheet you just created and set the scale for the site plan. Open the relevant plans, select the 2D objects/Texts/2D contents excluding labels/levels/markers.

How do I create a site plan from a worksheet?

Open the worksheet you just created and set the scale for the site plan. Open the relevant plans, select the 2D objects/Texts/2D contents excluding labels/levels/markers. Copy ( Ctrl+C / Cmd+C) to copy them to clipboard. Paste ( Ctrl+P / Cmd+P) them to the worksheet (site plan) just created.
