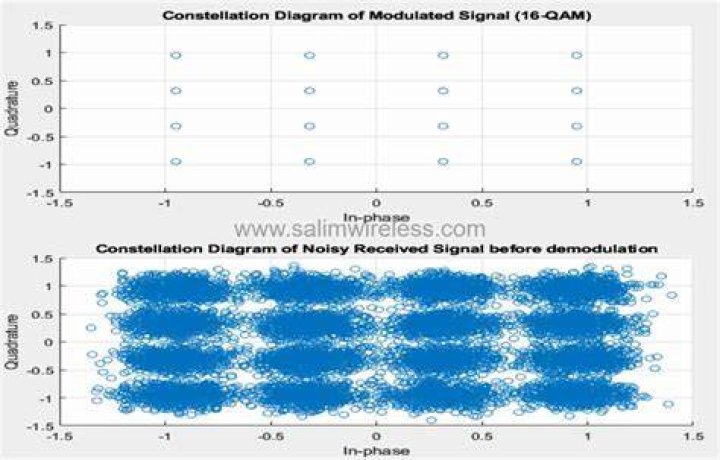

Modulate Data Using QAM Modulate the data using the qammod function. y = qammod(x,M); Display the modulated signal constellation using the scatterplot function. Set the modulation order to 256, and display the scatter plot of the modulated signal.

What is QAM demodulation?

The QAM demodulator is very much the reverse of the QAM modulator. The basic modulator assumes that the two quadrature signals remain exactly in quadrature. A further requirement is to derive a local oscillator signal for the demodulation that is exactly on the required frequency for the signal.

How do you make a QAM signal?

The basic way in which a QAM signal can be generated is to generate two signals that are 90° out of phase with each other and then sum them.

What is 8QAM?

Digital QAM (8QAM) In 8QAM, three input bits generate eight modulation states using four phase angles on 90 degree boundaries and two amplitudes (4 phases X 2 amplitudes = 8 states). Digital modulation greater than 8QAM is difficult to visualize.

How does QAM modulation work?

QAM is a modulation scheme that transmits data by changing the amplitude, or power level, of two signals: first in-phase with the incoming data and the second 90 degrees out of phase. QAM relates to the number of bits of information encoded in each time period.

What is the meaning of 16-QAM?

16 Quadrature Amplitude Modulation. This is a modulation technique in which the carrier can exist in one of sixteen different states. As such, each state can represent four bits – 0000 through to 1111, per symbol change.

What QAM 256?

Just what is QAM-256? It refers to Quadrature Amplitude Modulation, which is the means by which a carrier signal, such as an LTE waveform, transmits data and information. Ideally, a waveform/symbol carries as much data as possible in order to achieve higher data rates and increase spectral efficiency.

What does QAM mean?

Quadrature amplitude modulation (QAM) is a technique used to transmit two digital bit streams or two analog signals by modulating or changing the amplitudes of two carrier waves so that they differ in phase by 90 degrees, a quarter of a cycle, hence the name quadrature.

What is IQ signal?

Signal IQ is displayed below the pleth as a horizontal bar with vertical spikes. Each spike indicates the occurrence of an arterial pulse. – The height of the spikes indicates the confidence level of the reported oxygen saturation and pulse rate. The taller the spike, the higher the confidence level.

What is input in MATLAB?

Getting user input in MATLAB – the use of input, ginput and inputdlg. Finally, sometimes you require the user to select a certain portion of a graph to be analyzed further. This can be done through the use of the command ‘ginput’. The format for ginput is [x,y,mouse] = ginput(N), where (x,y) are the coordinates on the cartesian plane,…
