To convert a Spline into a polyline type PE on the command line press enter then select the spline from drawing area and press enter again. The spline will be converted into a polyline.

How do you convert a spline to a polyline?

To convert multiple splines at the same time, use the PEDIT command:

1. At the command line in AutoCAD, type PEDIT.
2. Type M for Multiple.
3. Select the splines.
4. Type Y to Convert Lines, Arcs and Splines to polylines.
5. Specify the precision <0-99>.
6. Press the Esc key to exit the command.

How do you flatten a spline in AutoCAD?

In 2012 just select the spline, right click,>spline>convert to pline, specify a precision, done.

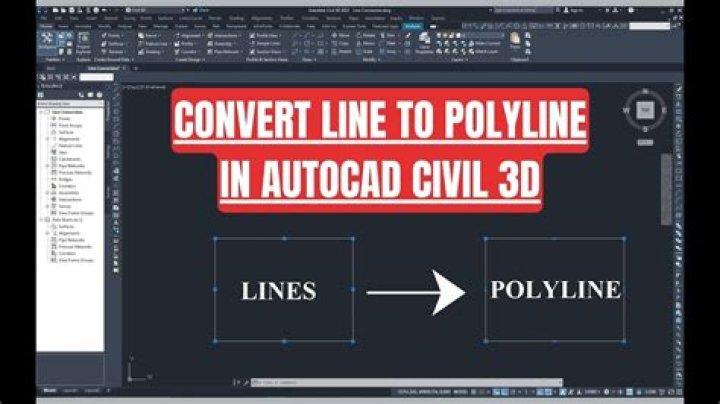

How do I convert lines to polyline in AutoCAD?

To Join Polylines, Splines, Lines, and Arcs Into a Single…

1. Click Home tab Modify panel Edit Polyline. Find.
2. Select a polyline, spline, line, or arc to edit.
3. Enter j (Join).
4. Select one or more polylines, splines, lines, or arcs that are located end to end.
5. Press Enter to end the command.

What is fuzz distance in AutoCAD?

The fuzz factor is the distance AutoCAD should look from an unattached endpoint for another object. AutoCAD can extend one or both lines to fill the gap, or simply add a segment to fill the gap; it may even need to do both.

What is meant by polyline?

A polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two.

How do I convert lines to polyline in Autocad?

How do I smooth a polyline in Autocad?

Enter f (Fit) to create an arc-fit polyline, a smooth curve consisting of arcs joining each pair of vertices. Enter s (Spline) to create an approximation of a spline. Enter d (Decurve) to remove extra vertices inserted by a fit or spline curve and to straighten all segments of the polyline.

How to convert a spline to a Polyline in AutoCAD?

How to Convert a Spline to a Polyline 1 At the command line, enter SPLINEDIT. 2 Select the Spline. 3 Type P for convert to Polyline, then ENTER. 4 Specify the precision <0-99>, then ENTER. See More….

How do I control the accuracy of a spline to polyline conversion?

The larger the precision value, the more accurately the polyline is going to match the path of the spline. It will also slow your drawing down. The PLINECONVERTMODE system variable can also be used to control the accuracy of a spline to polyline conversion. When it is set to 0, it converts splines to polylines composed of linear segments.

How do I create a spline?

How to create a SPLINE 1 Click on the SPLINE icon 2 Specify the points, one after the other 3 When you are done specifying points, Press ENTER More
