How do you connect a tachometer?

Mount the tachometer in a desired location using the parts that come with the tachometer. Connect the wiring Run the wires through the hole in the firewall and mount them to the firewall of the engine compartment as needed. Connect the black wire to the engine’s grounding connection.

How does a cable driven tach work?

A flexible cable with a rotating shaft connects a moving part in the engine or transmission to the gauge. Inside the instrument, the rotating shaft controls the position of a needle to indicate the engine speed. The heart of a mechanical tachometer is an eddy current sensor that contains a movable magnet driven by the rotating input shaft.

How does the tachometer work?

Tachometers , in their most basic forms, are devices that measure the speed of an object. Most commonly, they measure the rotation of a mechanism, like the engine shaft in a car. Traditionally, tachometers are dials with a needle pointing to the current speed in RPMs (revolutions per minute).

What is DC tachometer?

DC Tachometers (Electric Motors) Tachometers are used as velocity feedback sensors on speed-control systems. These devices generate an electrical signal which is proportional to the angular velocity of the motor shaft. They are used for monitoring open-loop systems and as the primary feedback element in velocity control systems.

Can I install a tachometer?

Partsools. Tachometer – – – – – Can be purchased from most any auto parts store for as low as$33.

Tachometer Input Wires. The following are the wires going into the tachometer.

Finding the Tach Wire.

Using the Tach Meter.

Next,I found where I wanted to mount the tach,and removed a dash panel to access the wiring behind it.

How to wire a Sunpro tachometer?

Sunpro tachometers are simple to install and should take about an hour to complete. Step 1 Connect the black wire to a clean unpainted ground using a ring terminal or other safe grounding means. Step 2 Connect the red wire to any battery harness that provides power when the power is in the “On” position.

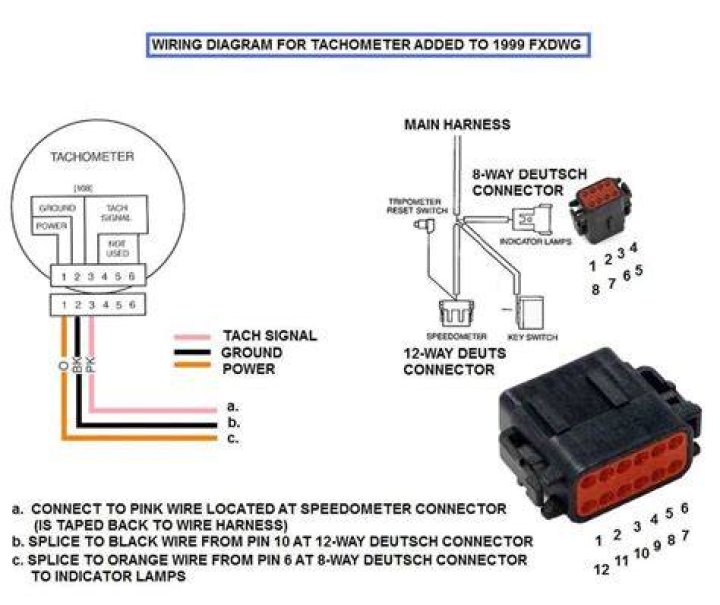

How to wire a tachometer?

Find an open,level surface to park the vehicle where there is plenty of light.

Run the tachometer wiring around or through the dash board down to the firewall behind the gas pedal.

Use an existing hole in the firewall to pass the black and green wires through to the engine bay.

Connect the tachometer’s black wire to the battery ground of the vehicle.

How can I check a tachometer signal?

Test the tachometer Take your multimeter and insert the tachometer probe in the multimeter. Set the multimeter to AC current and touch the tachometer wire that leads to the breaker box with the engine on. Have one of your friends sit in a car and tell you when the tachometer dial reaches certain points that are important for your calibration process.
