According to Table 1, the minimum bend radius is found to be six times the cable’s overall diameter. The overall diameter of the cable is given as 2.08 inches in the product catalog. Multiplying 2.08 inches by six, we get 12.48 inches.

What is minimum bending radius of cable?

The minimum bending radius for cables with shielded conductors is twelve times the diameter of one phase conductor or seven times the overall diameter, whichever is greater.

What is the minimum bend radius for copper cable installations?

The cable manufacturer gives a minimum bend radius of 12 times the cable diameter, which is 1.6 inches.

What is the minimum bend radius for multipair copper cable?

For multi-pair cables the minimum bending radius is 10 times outside diameter. The minimum bend radii for Type 1A Shielded Twisted Pair (100 Mb/s SRP) is 7.5 cm (3-in.)

Why is cable bending radius?

The cable bending radius is the minimum radius a cable can be bent without damaging it. The smaller the bending radius, the greater the flexibility of the material. Knowing your cable’s minimum bending radius will help prevent damage during installation.

What is the minimum bending radius of RF jumper cable?

The minimum bend radius varies depending on the specific RF jumper cable model. However, the minimum bend radius should not be less than ten times the outer diameter (OD) of the RF Jumper Cable in general. Thus, a 1/2″ jumper cable should not have any bends less than 10mm in radius.

What is the maximum bend radius for fiber optic cable?

If no recommendations are available from the cable manufacturer, the cable should not be pulled into a bend radius smaller than twenty (20) times the cable diameter.

Why is cable bend radius important?

The bend radius is the radius at which a cable can be bent without damaging it (including kinking). The smaller the radius, the greater the required flexibility of the material.

What is the minimum bend radius for fiber optic cable?

The optical minimum bend radius is equal to ten times the outer jacket diameter of that cable. So if you’re dealing with a fiber cable that has a 2mm outer jacket, then 2mm x 10 = 20mm bend radius.

What is fiber bend radius?

The “fiber bend radius” of a fiber optic cable is the term for how sharply a cable can safely bend at any given point. All cabling has a fiber bend radius, and the bend radius may be different according to different types or different make of cables.

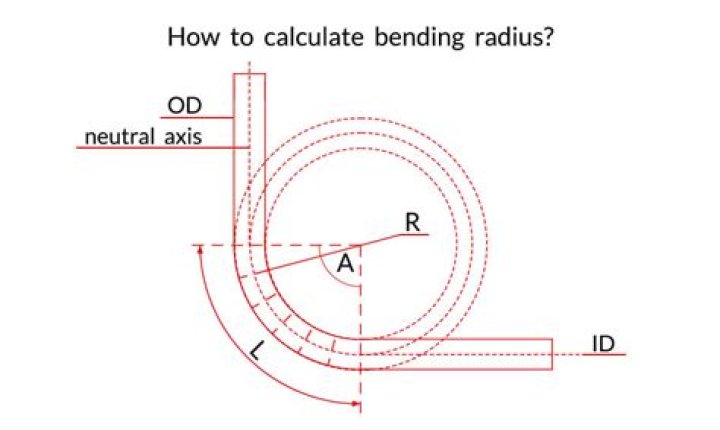

How do you calculate wire bend radius?

THE SHIELDED FORMULA: WIRE BEND RADIUS = CABLE JACKET OD X 7. For U/UTP structured cable, that being a cable that possesses no shielding in the form of screen or foil, the bends can be nearly twice as tight. In this case, the wire bend radius should not be tighter than 4X the OD of the cable.

What is the minimum bending radius for aluminum and copper bus bars?

The minimum bending radius for aluminum is equal to twice the thickness of the bar. The surface roughening that may occur at the bend is not serious as long as it is only a surface condition. 4. The copper bus bar is ETP-110 100% IACS (International Annealed Copper Standard) conductivity (0.15328 ohm-gram/square meter) per ASTM B187.

What is the minimum bending radius of a shielded conductor?

The minimum bending radius for cables with shielded conductors is twelve times the diameter of one phase conductor or seven times the overall diameter, whichever is greater. Note: The minimum bending radius applies to the inner surface of the cable and not to the cable axis.

What are the factors that influence the minimum bending radius?

There are 4 factors which influence the minimum bending radius, including the cable insulated material, the cable construction, the cable size and the cable’s overall diameter. To install the cables safely without damaging the electrical and physical properties of the cables, the tabulated minimum bending radius must be observed.
