At the half frequencies, power of the circuit is P=Pmax2=i2maxR2=(imax√2)2R. This means that the current in the circuit at half power frequencies is imax√2.

How do you find the frequency of an RL circuit?

The resonant frequency is found by using the expression in f0=12π√LC f 0 = 1 2 π L C . The current at that frequency is the same as if the resistor alone were in the circuit.

What frequency is used in LR circuit?

Here, in a LR circuit we can take the output either across from the resistor or across the inductor. Hence we shall be having two frequency response curves. Audio Frequency oscillator(Signal generator) is set to a conveniently low value at about 5V at a frequency of 50 Hz.

What is half-power frequency?

The frequencies for which current in a series RLC (or a series tuned) circuit is equal to 1/√2 (i.e. 70.71%) of the maximum current (current at resonance)are known as Half Power Frequencies.

What is the lower half-power frequency?

Explanation: The upper and lower cut-off frequencies are sometimes called the half-power frequencies,. At these frequencies the power from the source is half of the power delivered at the resonant frequency. The expression of power (P1) at lower half power frequency is P1 = (I2maxR)/2.

What is cutoff frequency for RC circuit?

The cutoff frequency of an RC low-pass filter is actually the frequency at which the amplitude of the input signal is reduced by 3 dB (this value was chosen because a 3 dB reduction in amplitude corresponds to a 50% reduction in power).

How do you find the frequency of an AC?

AC Waveform Characteristics Frequency is the reciprocal of the time period, ( ƒ = 1/T ) with the unit of frequency being the Hertz, (Hz). The Amplitude (A) is the magnitude or intensity of the signal waveform measured in volts or amps.

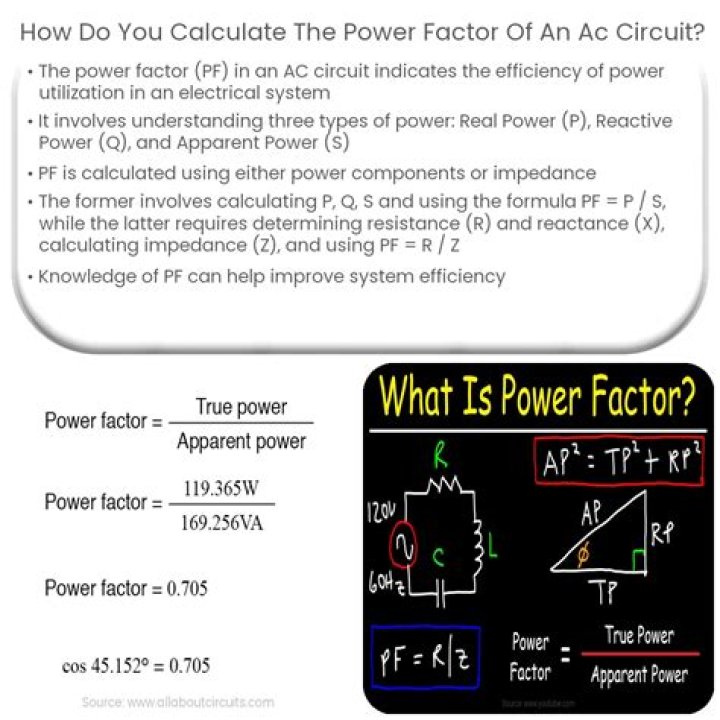

How do you calculate power in an RL circuit?

1. Calculate Power factor (pf) p.f. = cos (14º) p.f. = 0.097.
2. Calculate Applied Voltage, V. V = I Z. Z = √R2 + XL2 so, V = I√R2 + XL2
3. Calculate True Power, P. P = EI cos θ P = (412.3)(2)(0.97) P = 799.86 watts.
4. Calculate Reactive Power, Q. Q = EI sin θ Q = (412.3)(2)(0.242) Q = 199.6 VAR.
5. Calculate Apparent Power, S.

What is RL in a circuit?

A resistor–inductor circuit (RL circuit), or RL filter or RL network, is an electric circuit composed of resistors and inductors driven by a voltage or current source. A first-order RL circuit is composed of one resistor and one inductor and is the simplest type of RL circuit.

What is the formula for power in series RL circuit?

The instantaneous power deliver by voltage source V is P = VI (watts). Power dissipated by the resistor in the form of heat, P = I 2 R (watts). So, total power in series RL circuit is given by adding the power dissipated by the resistor and the power absorbed by the inductor.

What is the output potential of RC low pass filter?

The equations have the same physical form as the RC low pass filter, but with time constant L/R instead of RC. The output potential is E m for a D.C. potential, and zero for very high frequency. High frequencies are suppressed and low frequencies are not really affected. The half power angular frequency is again the reciprocal of the time constant.

How to measure inductive reactance and impedance in series RL circuit?

In series RL circuit, the values of frequency f, voltage V, resistance R and inductance L are known and there is no instrument for directly measuring the value of inductive reactance and impedance; so, for complete analysis of series RL circuit, follow these simple steps:

What happens when frequency increases in a series RL circuit?

So, in series RL circuit if frequency increases, Inductive reactance also increases as it is directly proportional to frequency. Total impedance Z increases. Phase angle θ increases. Resistance remains constant.
