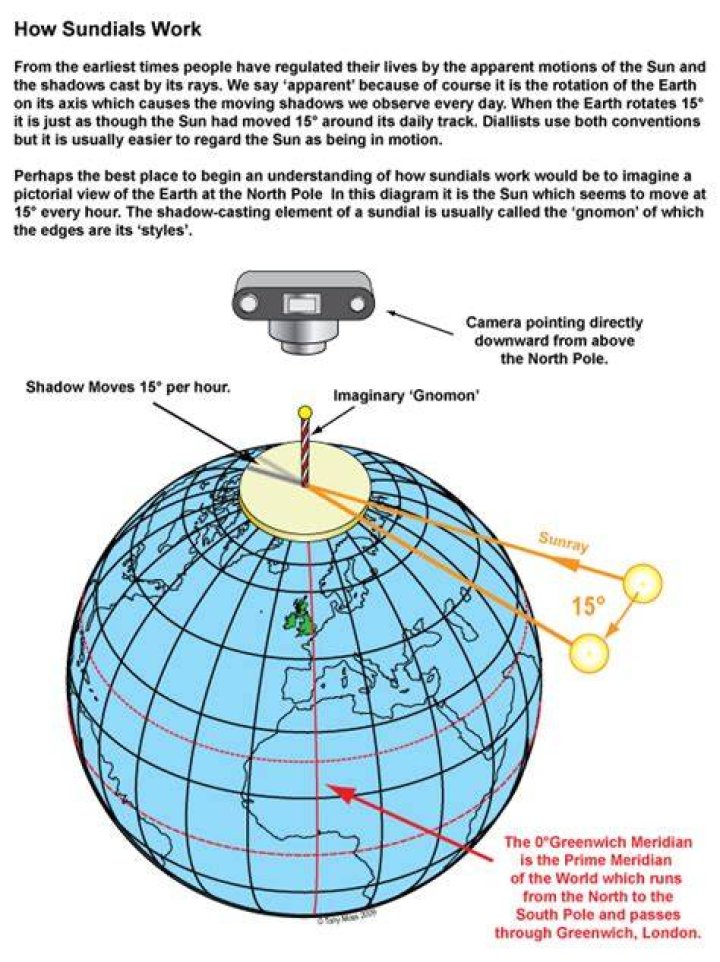

The surface of a sundial has markings for each hour of daylight. As the Sun moves across the sky, another part of the sundial casts a shadow on these markings. As the day passes, the gnomon’s shadow moves around the dial. Every hour it falls on a new hour line.

How do you explain sundials to kids?

A sundial is an instrument with a pole, or gnomon, in its center and markings that tell the time like a clock. When the sun shines on the gnomon, shadows are cast, or appear at different markings on the sundial. This is a sundial. Its gnomon has a shadow that indicates the time on the sundial.

How do you calculate a sundial?

The formula for calculating the hour lines (theta) on a horizontal sundial is:

1. tan(theta) = tan(HA) x sin(lat)
2. theta = the resulting dial hour angle measured from the noon line (- is left of the noon line, + is right of the noon line)
3. HA = the hour angle of the sun from the noon meridian, expressed in (+/-) degrees.

How does a sundial work simple?

A sundial contains a gnomon, or a thin rod, that casts a shadow onto a platform etched with different times. As the sun changes relative positions over the course of a day, the rod’s shadows change as well, thus reflecting the change in time.

How do sundials work at night?

In principle, a sundial can also be used during the night, provided that the moon is sufficiently bright and that the lunar age is known. The ‘solar time’ can then be obtained from the ‘lunar time’ (both expressed in equal hours) by adding four-fifths of an hour for each day of the lunar cycle.

How do you make a homemade sundial?

There are three options for making your sundial:

1. Straight stick and stones for hour markers.
2. A paper plate, straight stick and markers (optional: playdough)
3. A tree slice, stick and pencil or piece of chalk.

How do you make a simple sundial?

Take your plate and plastic straw outside. Put the plate on the ground and poke the straw through the hole you made. Slant the straw slightly toward the line you drew. Carefully rotate the plate so the shadow of the straw lines up with the line you drew.

How many hours in a day does a sundial measure?

As a result of this movement (and depending on where you live), the shadow cast by the sun moves approximately 15 degrees each hour so that over the course of 24 hours it travels a full 360 degrees around your sundial.

How do you use a sundial for kids?

1Cut out the sundial and glue it to a paper plate. 2Poke a hole through the center of the plate using the pencil. 3Push the straw through the hole, and tape the short end underneath to hold it in place. 4Take your sundial outside on a sunny day at noon and place it in a flat, sunny area.

Where is the best place to put a sundial?

Sundials need to point in the direction of True North, and the style (either a sharp straight edge or thin rod, often located at the edge or tip of the gnomon) must be aligned with the Earth’s rotational axis.

Do sundials need to face north?

To be accurate, such a sundial must have been designed for the local geographical latitude and its style must be parallel to the Earth’s rotational axis; the style must be aligned with true North and its height (its angle with the horizontal) must equal the local latitude.

How can I use a sundial to teach children about time?

Use this Sundial Print Out activity as a fun way to teach children about time. This interactive clock craft can be used in class or at home. Follow these simple instructions to assemble your own sundial: Simply download the worksheet, print it out and cut around the outline of the clock face and the dial.

How does a sundial show the time?

As the Sun moves across the sky, another part of the sundial casts a shadow on these markings. The position of the shadow shows what time it is. The flat surface of a sundial is called a dial plate. It may be made of metal, wood, stone, or other materials.

How is a sundial projected on a Hori-Zontal plane?

For a horizontal sundial, the circular equatorial dial is projected onto a hori-zontal plane as an ellipse (Figure 9). As for the equatorial and verticalsundials, the gnomon makes an angle Lwith the horizontal. The semi-minor(east–west) axis is a, the radius of the equatorial dial. If bis the semi-major(north–south) axis of the ellipse,

What is the flat surface of a sundial called?

The flat surface of a sundial is called a dial plate. It may be made of metal, wood, stone, or other materials. Numbered lines on the dial plate, called hour lines, show the hours of the day.
