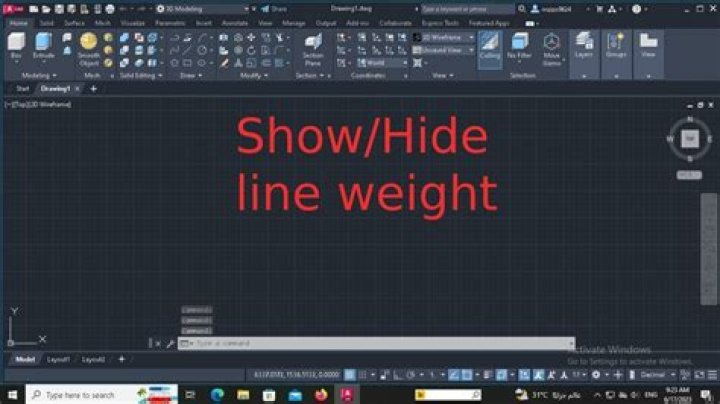

Click Show/Hide Lineweight Find on the status bar. The status bar is located in the lower right-hand corner of the application window. If no change is visible, it’s probably due to a combination of the thickness of the line compared to the display resolution of your monitor.

How do I change the default thickness in AutoCAD?

To Set the Thickness of New Objects

1. Make sure no objects are selected.
2. If the Properties palette is not displayed, click View tab Palettes Properties. Find.
3. In the Properties window, under General, enter the value for Thickness. When new objects are created, they have the specified 3D thickness.

How do I change units in AutoCAD?

To change the units in AutoCAD:

1. Type Units and Hit ENTER on your keyboard, the following window should pop up.
2. Click on the drop down menu under Insertion scale, select the appropriate unit and click on OK. Hope that did the trick.

How do you change the line thickness in AutoCAD 2021?

How thick is the default lineweight in Autocad?

0.25 mm
The DEFAULT value is set by the LWDEFAULT system variable, which has an initial value of 0.01 inches or 0.25 mm. All new layers use the default setting. The lineweight value of 0 plots at the thinnest lineweight available on the specified plotting device and is displayed at one pixel wide in model space.

How do I change the thickness of an arc in Autocad?

Modify tab->Rendering rollout: Check Enable in Renderer: Check Enable in viewport: Assign value to thickness.

How do I change Units in mm in AutoCAD?

1. Open AutoCAD Architecture or AutoCAD MEP and start a new blank drawing.
2. Enter UNITS command to bring up the “Drawing Setup” dialog box.
3. Once there, change “Units” to “Millimeters” or “Meters”.
4. Check the box next to “Save as Default” in the bottom left of the dialog box.

How do you change the line thickness in AutoCAD?

Click the Layer tab. To change a layer’s line color, select the layer, click Set Color, and then select a new color from the Colors dialog box. Click OK. To change a layer’s line weight (thickness), select the layer, click Set Line Weight, and then type a line weight in the Custom Lineweight dialog box.

How do you change plot styles in AutoCAD?

To change the default plot style used for plotting drawings: Go into Options, to the Plot and Publish tab, and click the Plot Style Table Settings button. Under Default Plot Style, select either Use Color-Dependent Plot Styles or Use Named Plot Styles. Select the default plot style table from the drop-down list.

What does ‘lineweight’ mean in drawing?

In simpler terms, lineweight refers to the strength, heaviness, or darkness of a line. Lineweight is governed by the pressure on your drawing tool as you make your line. If you apply less pressure on the tip, the line will be light and it darkens as you increase the pressure.
