Right-click in the drawing area, and choose Properties. In the Properties palette, click Linetype Generation, and then click the down arrow. Do one of the following: Choose Enabled to display the linetype without regard to the polyline segments.

How do you fix linetypes in AutoCAD?

The following process could also be used to restore a damaged linetype:

1. Use RECOVER to open the drawing.
2. Remove the usage of the damaged linetype by changing all layers and objects to a different linetype.
3. Enter PURGE and select All.
4. Enter SAVEAS to DXF format.
5. Close and reopen the DXF file.

How do you make a text linetype?

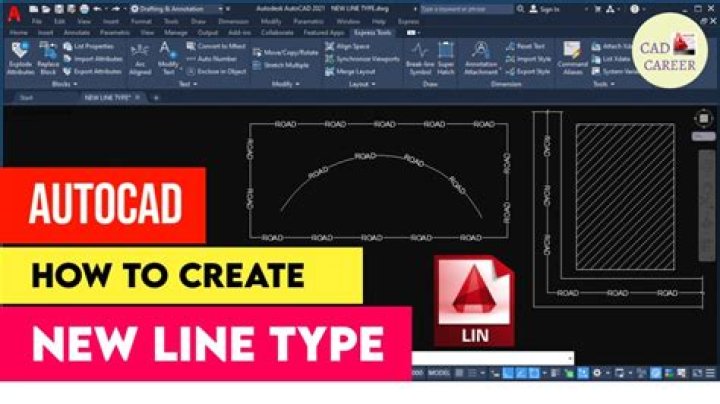

To Include Text in Custom Linetypes

1. Create a simple linetype, as described in To Add a Simple Linetype to a LIN File.
2. Add the text character descriptor within the linetype pattern, using the following format: [“text”,text_style_name,scale,rotation,xoffset,yoffset]

How do I make a complex linetype in AutoCAD?

Scale

1. In AutoCAD, create two text styles.
2. Use the txt.
3. Accept the defaults for all the other settings.
4. Enter ltscale on the command line, and set the value to 1.
5. Enter celtscale on the command line, and set the value to 1.
6. In a text editor, create a file named test.
7. Start a new drawing.

How do I show linetypes in AutoCAD model space?

Linetypes are controlled by four variables: LTSCALE, CELTSCALE, PSLTSCALE and MSLTSCALE. To put simply set the value of the above four variables to 1 and your linetypes will show appropriately in both paper space and model space.

What are Linetypes in AutoCAD?

Linetype is a visual property assigned to geometric objects. Linetypes can be a pattern of dashes, dots, text, and symbols, or unbroken and continuous. The current linetype setting defines the default appearance of all new geometric objects.

How many linetypes are in AutoCAD?

The AutoCAD software package comes with a library of standard linetypes that has 38 different standard linetypes. Linetypes can be a pattern of dashes, dots, text, and symbols or unbroken and continuous….Typical Layers.

Why is my Viewport not showing?

Make sure the layer has not been turned off or frozen: In the Layer Properties Manager, make sure the layer that contains the viewport geometry is not turned off or frozen. Go to the layout tab that contains the problem viewport. On the Quick Select dialog box, set the Object type to Viewport and click OK.

How do you show linetypes in paper space?

Turn off the paper space units option for linetypes:

1. Enter LINETYPE to open Linetype Manager.
2. Click Show Details.
3. Deselect Use Paper Space Units for Scaling.
4. Click OK.
5. Double-click into the viewport to activate it.
6. Enter REGEN.

How do you regenerate in AutoCAD?

You can force a REgen — that is, tell AutoCAD to regenerate the drawing right now, whether it needs it or not — by running the REgen command. You might want to run the REgen command after AutoCAD prompts Regen queued to ensure that what you see on the screen is what you get in the DWG file when you save it.

What are line types in AutoCAD?

In AutoCAD these types of line are called Linetypes and are associated with AutoCAD’s Layer system, which allows a user to group similar objects together. All the objects on a Layer would have the same Linetype and color, making the group easily identifiable.

How to change line type in AutoCAD?

Select the objects.

How do you change plot styles in AutoCAD?

To change the default plot style used for plotting drawings: Go into Options, to the Plot and Publish tab, and click the Plot Style Table Settings button. Under Default Plot Style, select either Use Color-Dependent Plot Styles or Use Named Plot Styles. Select the default plot style table from the drop-down list.

How to create floor plan in AutoCAD?

Step 1: Preparation.
