When using more than one speaker with your amp the equivalent overall impedance changes depending on how the speakers are wired. You can wire multiple speakers “in series,” “in parallel” or in a combination of the two wiring configurations (“series/parallel”).

What is series parallel wiring?

In a series circuit, all components are connected end-to-end, forming a single path for electrons to flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.

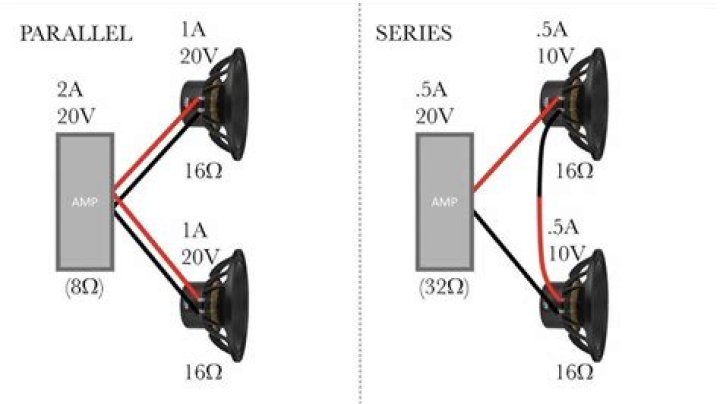

What is the difference between series and parallel speaker wiring?

Series – When you wire (hook-up) speakers in Series, the speakers resistance (as measured in ohms) is additive – i.e. putting two 8 ohm speakers in Series results in a 16-ohm load. Parallel – When wiring in parallel, the resistance of the speakers decreases.

How do you connect series in cabinets?

Whether you want to wire up your cabinets in series or in a parallel configuration, the Cab-Link makes things easy. Simply connect two speaker cables from the Cab-Link outputs to each of your cabinets, and a third speaker cable from the output of the amp head to either the series or the parallel input.

How do I wire 4 speakers in parallel?

The easiest and a safe way to connect 4 pairs of HiFi speakers is to use a 4 zone speaker selector switch. This is relatively simple to wire, just run a wire from the central location (lounge room) to each speaker. The box should also look after any impedance matching to prevent amplifier overload.

How do you wire a series parallel circuit?

If all four speakers have the same impedance, with series-parallel wiring, the final impedance will be the same as the impedance of a single speaker. You will simply series two sets of two speakers and then wire one group of two speakers in parallel with the other group of two speakers.

What is the difference between series and parallel wiring for speakers?

When guitar speaker cabinets are wired together in this way, you add the impedance of all the speakers together to arrive at the total load value, so those same two 8 ohm speakers present a 16 ohm load to the amplifier when they are wired in series. As with parallel wiring, two 50W speakers wired in series can handle up to 100W.

How do you wire two speaker cabinets in parallel?

Wiring two guitar speaker cabinets in parallel Parallel wiring connects each of the speakers directly to the amplifier’s output, with wires from the positive terminal of the amp’s output routed to the positive terminal of each speaker, and wires from the negative terminal going to the negative terminal on each speaker.

How do you wire a 4×12 speaker?

There are two ways you can wire a 4×12 (or 4×10 for that matter), the main one is Series/Parallel: 4 X 8 Ohm Speaker = 8 Ohm Load; 4 X 16 Ohm Speaker = 16 Ohm Load

What are the different types of Speaker wiring?

SERIES & PARALLEL SPEAKER WIRING 1 BASICS OF WIRING SPEAKERS. There are several ways to wire up Speakers, the most common methods are Series and Parallel which are discussed here. 2 SERIES SPEAKER WIRING. 3 PARALLEL SPEAKER WIRING. 4 A COMBINATION OF SERIES & PARALLEL.
