At what amperage does a GFCI trip off?
Daniel Lopez around 6 mA

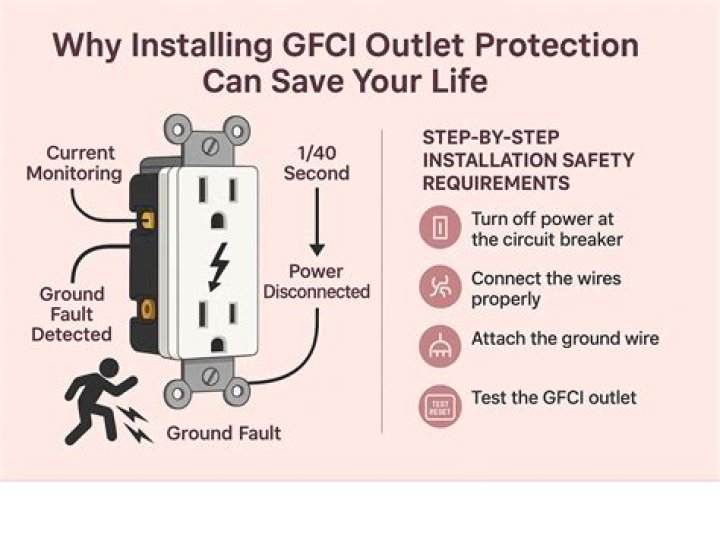

GFCI uses and maintenance The actuating energy for standard breakers and fuses far exceeds the lethal amount, but most GFCIs trip at around 6 mA. A GFCI uses a current transformer to detect the difference between the line current supplied to the load and the neutral current returning from the load.
Do 40 amp breakers exist?
The exception is because 40A receptacles do not exist, or rather, are not part of the NEMA standards. (There are enough varieties of receptacle already!) The circuit breaker must be no larger than the wiring is fit for – if the wiring is 8 AWG, the breaker must be 40A (or smaller).
Do they make a 30 amp GFCI outlet?
Murray MP130GFA 30 Amp Single Pole GFCI Circuit Breaker with Self Test & Lockout Feature.
What is a 40 Amp single pole breaker used for?
Uses the entire 240 volts available to the panel. The 15-amp and 20-amp breakers often handle baseboard heaters, 30-amp serve water heaters and electric dryers, 40- and 50-amp are for electric ranges, and the 70-amp could serve a large air conditioner or a subpanel.
What amperage will cause a Class A GFCI to trip?
5 milliamps
There is a Class A GFCI that trips when a ground fault current exceeds 5 milliamps and there is a Class B GFCI that trips when a ground fault current exceeds 20 milliamps.
What to do if GFCI keeps tripping?
If you want to determine if overloading is really the problem, follow these steps in order.
- Unplug all the appliances connected to the circuit in question.
- Reset the circuit on your fuse box.
- Wait several minutes.
- Plug an appliance back in and turn it on.
- Check to see that your circuit has not tripped.
How many amps can a 40 amp breaker handle?
There is a 40-amp circuit with a maximum output of 9,600 watt. 12,000 watt is equal to 50 Amps x 480 Amps.
Can you run a 40 amp breaker on 10 gauge wire?
“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”
How many amps is a 40 amp breaker good for?
How Do You Size a Wire?
| Wire Gauge | Diameter In Inches | Rated amps |
|---|---|---|
| 12-AWG | 0.0808 | 20 amps |
| 10-AWG | 0.1019 | 30 amps |
| 8-AWG | 0.1285 | 40 amps |
| 6-AWG | 0.1620 | 55 amps |
At what current does a GFPE trip?
There are two typical types of GFPE that are used throughout industry. One type is used to provide ground-fault protection for heat trace and is generally set to trip with 30 milliamperes (mA) of current flow to ground.
How many watts on a 40 amp circuit breaker?
30-amp 240 -volt circuit: 30 amps x 240 volts = 7,200 watts. 40-amp 240 -volt circuit: 40 amps x 240 volts = 9,600 watts . 50-amp 240 -volt circuit: 50 amps x 240 volts = 12,000 watts. What size generator will run a 30 amp camper?
What gauge wire is required for a 40 amp circuit?
A 40 amp breaker requires an 8 gauge or fatter wire (copper) for the circuit it serves. Check the place in the panel to be sure that the two fins on which the breaker will fit on have 240 volts across them (are on opposite sides of the 120./240 volt service).
What are advantages of GFCI circuit breakers?
Features & Benefits: Fast installation: easier to install one device than two Cost savings: lower cost than purchasing both a GFCI and AFCI Smaller device: combines two state-of-the art technologies into one small device Self Test feature as required by UL 943 effective June 2015 Autonomously and continuously tests itself for device malfunction
What does 40 C mean on a circuit breaker?
40°C – This marking indicates the maximum ambient temperature in which the circuit breaker can be applied at its marked ampere rating without rerating the ampacity of the circuit breaker.
